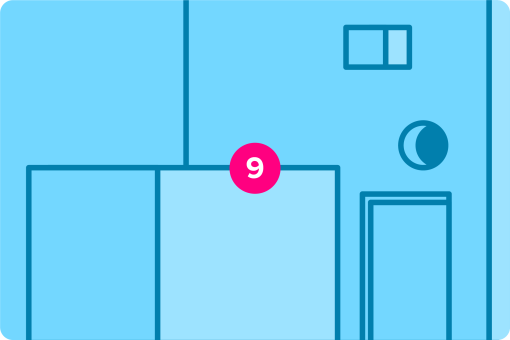

9. Abutment

Interface definition

Building abutments refer to the points of support where different sections of a structure meet or where a new structure connects to an existing one. They play a crucial role in maintaining the stability, integrity, and load distribution of a building. Abutments are especially significant in scenarios where there are changes in direction, level, or structural systems within the building.

Examples of types of abutments include:

• Structural abutments: Beam abutments where beams meet walls or columns.
• Expansion joint abutments: Allow for thermal expansion and contraction, seismic activity or other movements.
• Façade abutments: Where differing façade materials meet such as brick and glass.
• Foundation abutments: Transfer loads from superstructure to the foundations and prevent differential settlement.

Interface requirements

Critical requirements for a abutment interface were summarised as follows:

• Low-cost, widely accessible details for Transform-ER.
• Must act as a connection detail between EWI and the existing property.
• Must keep in line with fire regulations and UK building regulations.
• Prevent damp/moisture ingress into the property.
• Ensure insulation and thermal properties are continuous across the interface.

Interface categorisation

• Fire risk
• Insulation risk
• Structural risk
• Condensation risk

Testing and validation

It is important that the system provider considers how any external wall system will interface with abutments to ensure the claimed system performances are not adversely impacted due to this interface. It is also important to ensure no unintended consequences are created.

Wall-to-roof abutments occur where a vertical external wall terminates into a flat roof, garage, extension, or roof terrace. In retrofit situations, these junctions are often difficult to insulate and seal correctly due to access constraints, legacy detailing, and incompatible substrates.

Poor design at these interfaces can lead to cold bridging, moisture ingress, and detailing failure. This guide supports manufacturers in developing robust, validated abutment details that maintain thermal and moisture integrity.

Develop standardised detailing packages

Wall-to-flat roof abutments are high-risk detailing zones in retrofit EWI systems, requiring careful integration of waterproofing, insulation continuity, and fire- and moisture-resistant components. Manufacturers should provide multiple standardised abutment solutions for different roof types and ensure they are validated through modelling, material testing, and robust installation practices.

Manufacturers should consider preparing standard solutions for these typical abutment conditions:

• EWI system terminates above a flat roof, terrace, or extension.
• Wall continues beyond the roofline (e.g. parapet wall or upper-storey façade).
• Wall terminates at a rooflight kerb, upstand, or coping.
• Where a flat roof drains towards the wall, increasing splashback and water risk.

Key issues to address:

• Termination of insulation at the base of the wall.
• Interaction between the EWI system and flat roof weathering membrane.
• Drainage path away from the wall to prevent ponding and splashback.
• Protection of render base or exposed insulation from water or UV damage.

Generic details and guidance are available in INCA Technical Guidance Document 06.

Design detail validation

Thermal performance

• Thermal bridging at the base of the wall can cause surface mould or performance loss. Assess impact of thermal bypass where insulation terminates abruptly.
• Psi-value modelling on defined details as per BS EN ISO 10211, BR 497 and BRE IP 1/06.

Moisture and drainage

• Design termination with: Drip bead or weathering flashing to prevent capillary return and water tracking. Raised membrane upstand with wall insulation overclad or lapped behind.
• Modelling may be needed where insulation terminates near a wet or vapour-heavy environment – BS 5250:2021 provides guidance on moisture management and assessment approaches e.g. hygrothermal modelling to BS EN 15026 and condensation risk analysis to BS EN ISO 13788.

Structural durability

Where insulation and render are exposed at the base:

• Validate against freeze-thaw resistance (ETAG 004 / EAD 040083-00-0404).
• Specify moisture-tolerant insulation types (e.g. XPS or mineral wool with capillary break).

Termination details must avoid compromising roof membranes or drainage components.

Fire risk consideration

Where the wall extends above a roof serving another dwelling, review proximity to boundary per Approved Document B.

Relevance

Poor abutment detailing can result in:

• Water ingress at the base of the wall due to inadequate lap or flashing.
• Capillary tracking from wet roof finishes into insulation or render.
• Ponding or overflow at the junction leading to long-term material degradation.
• Thermal discontinuity at critical junctions, contributing to discomfort or heating inefficiency.
• Delamination or cracking of render at the base due to splashback or frost.

Site validation

Detailing should be checked after the system is installed to confirm the validity of the proposed designs. Below are post installation checks that may be appropriate.

• Visual confirmation – Check fall direction and water-shedding effectiveness at junction.
• Infrared thermography (BS EN 13187) to verify thermal continuity and bridging at base termination.
• Blower door testing (BS EN 12114) to identify leakage points at penetrations (if applicable) to confirm airtightness where EWI abuts internal conditioned space.
